Limaflex®

Limaflex Pool surround

System DescriptionInstallation NotesApplication examplesProfile type 55 + 120mmProfile type 200mm
Previous Previous Previous Next Next Next

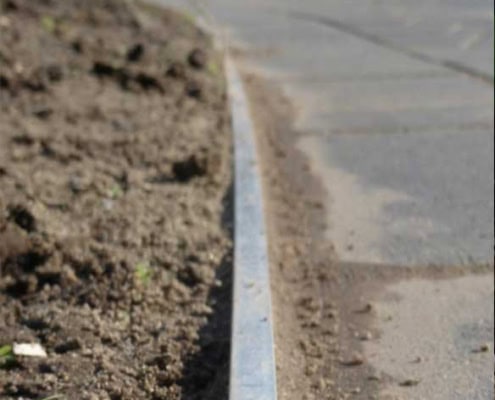

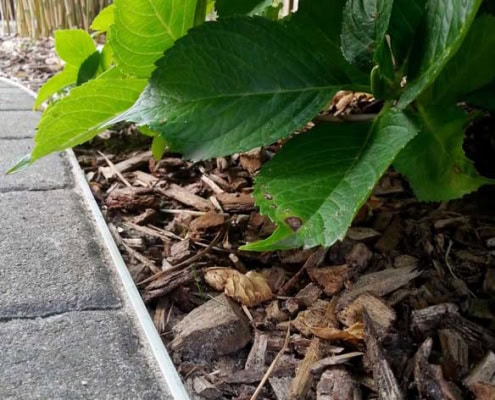

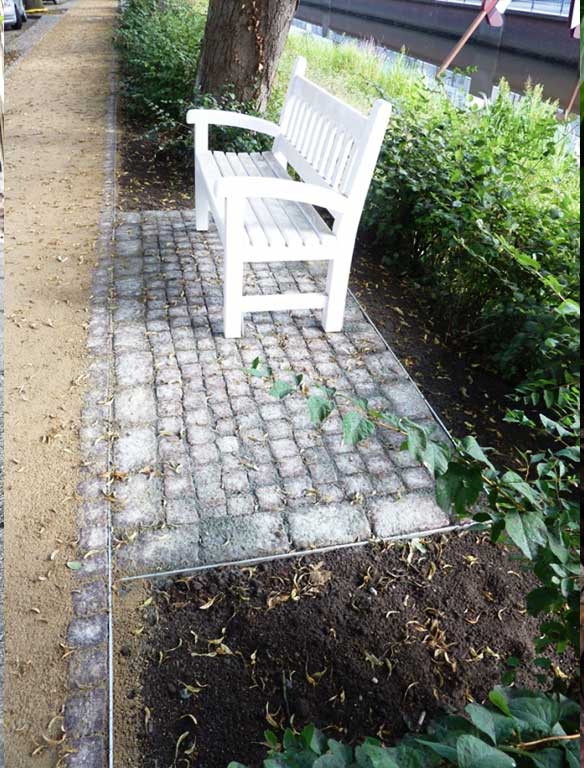

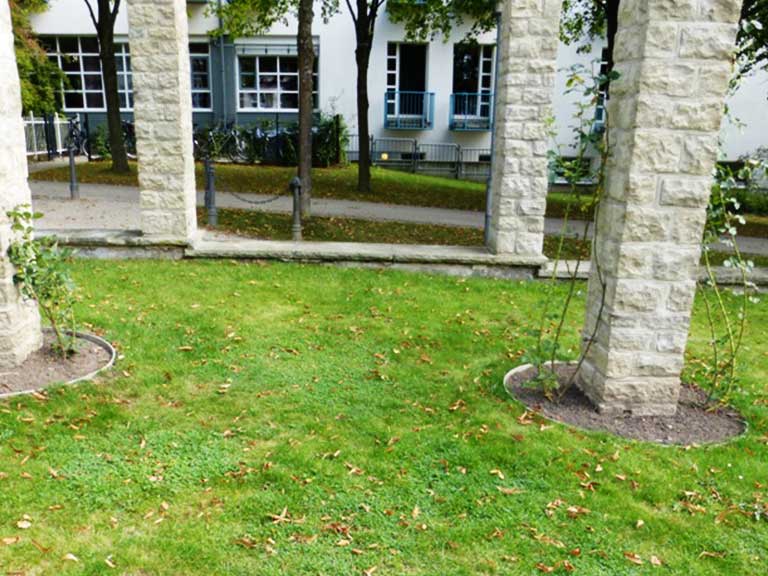

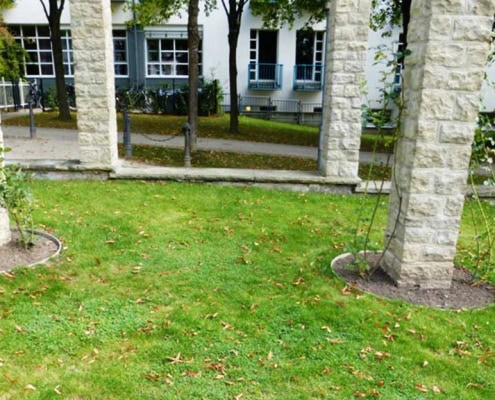

Limaflex in BogensegmentenPillauer Straße, Hamburg
Limaflex in Bogensegmenten
Limaflex in Bogensegmenten

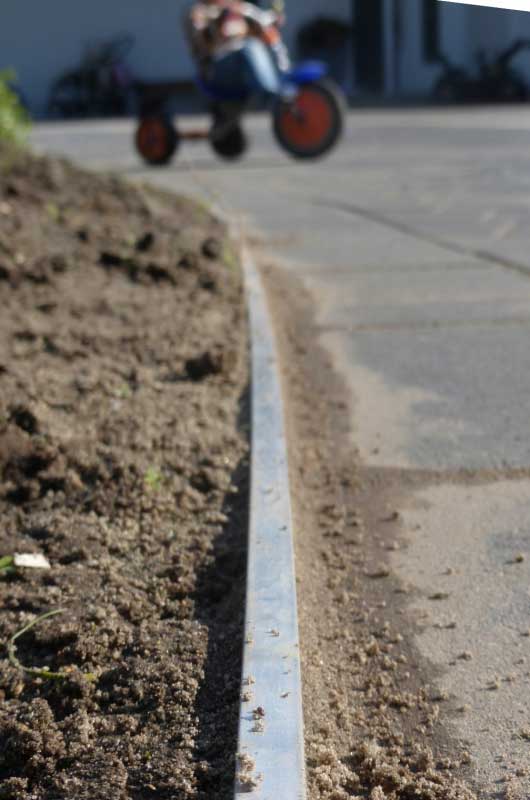

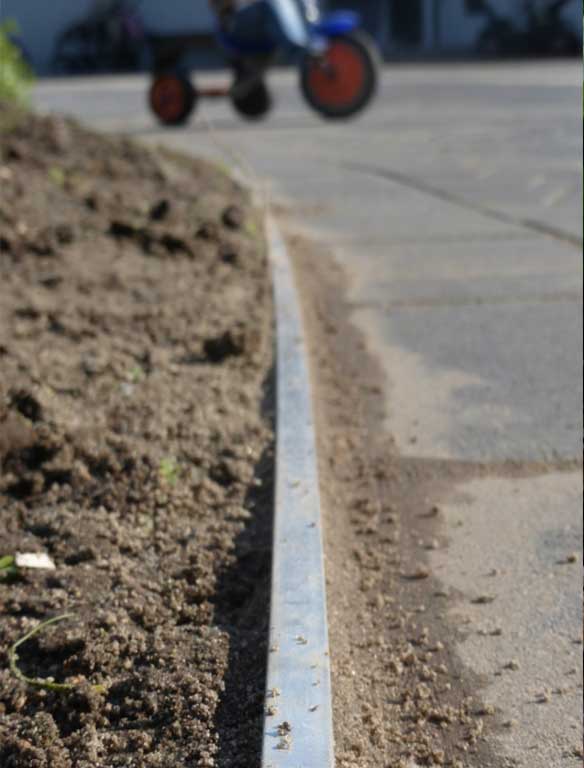

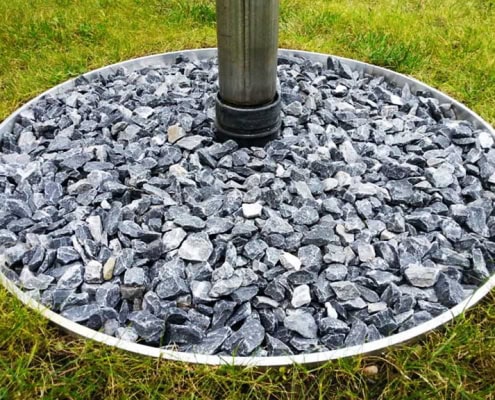

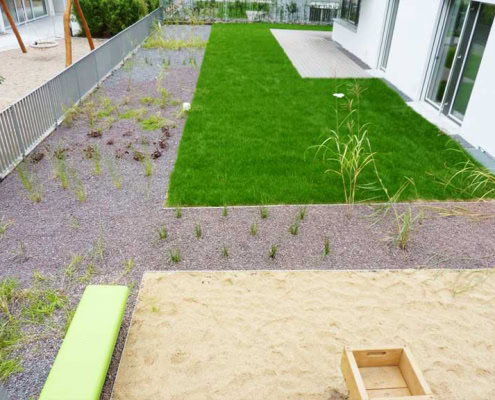

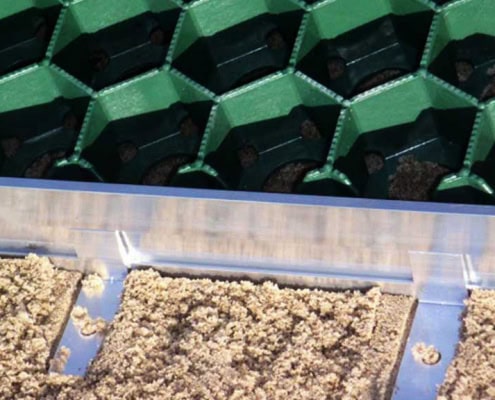

The Limaflex® support rim provides pavings slabs, stone paving, gravel and crushed stone with the necessary support, prevents the outer base layer from giving way and facilitates the design and construction of your outdoor area.

Profile heights of 55, 120 and 200 mm are available, depending on application.

Special concrete/ground anchors provide particularly strong support for heavily used profiles.

The support rim can be laid easily and in almost any shape, makes efficient use of materials and does not require special tools. Despite its low weight it is extremely robust and does not decay, crack or rust unlike wood, plastic or steel. Aluminium has proven itself over decades as a more durable and weather-resistant building material with an extrem high recyclable proportion .

Limaflex® Option roof

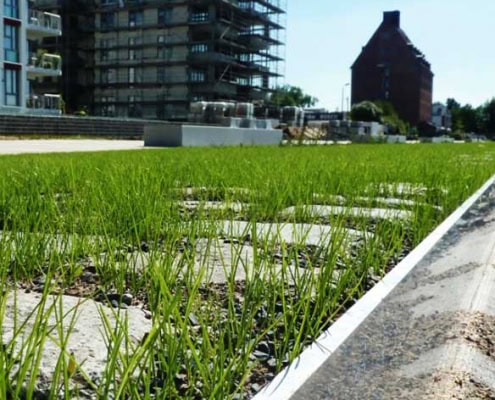

When using profiles of heights of 55 and 120 mm with water flow openings and with 90° profile anchors for mounting, the support rim is also ideal for roof greening.

Your advantages at a glance:

  • Internal, not visible profile connection
  • Clean lines and contours
  • Easy to transport and easy laying
  • Reusable, corrosion-resistant and recyclable aluminium alloy

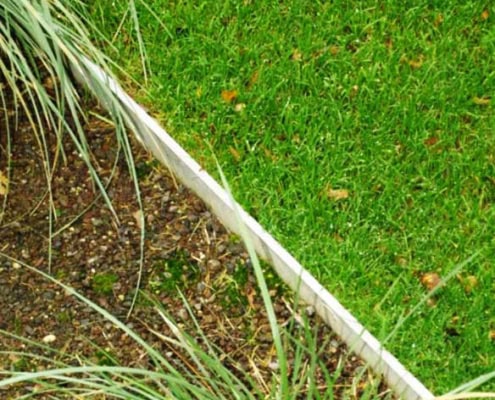

  • Malleable for the individual design of arcs, circles and free forms
  • Moveable and individually adjustable profile anchors and concrete/ground anchors

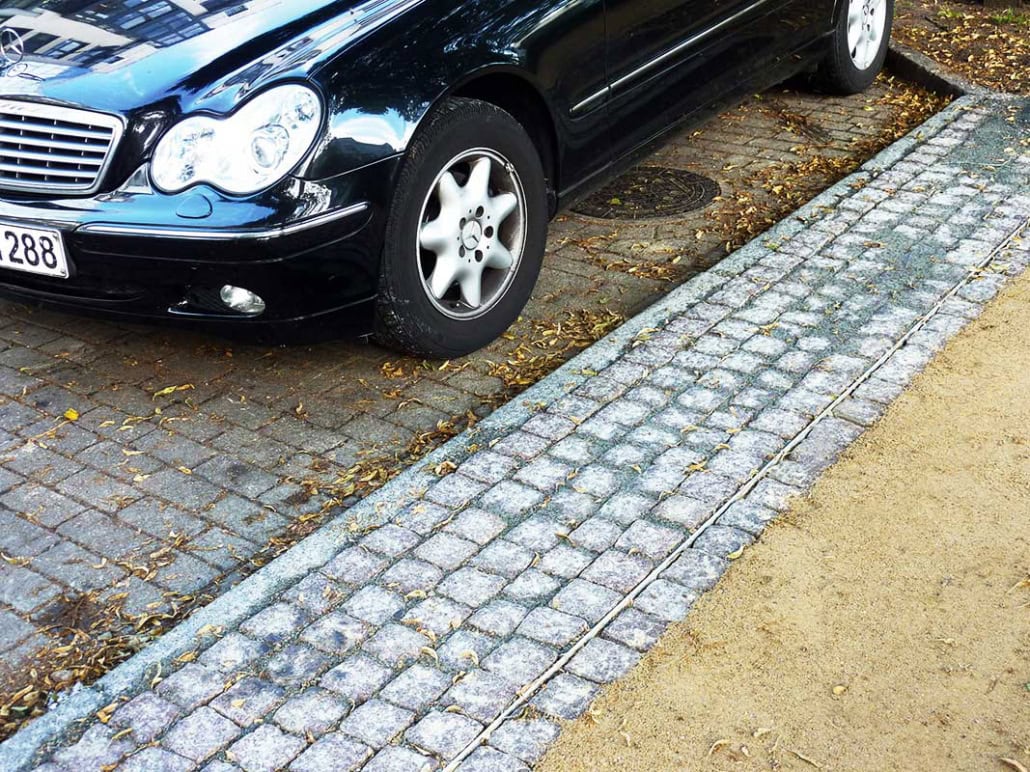

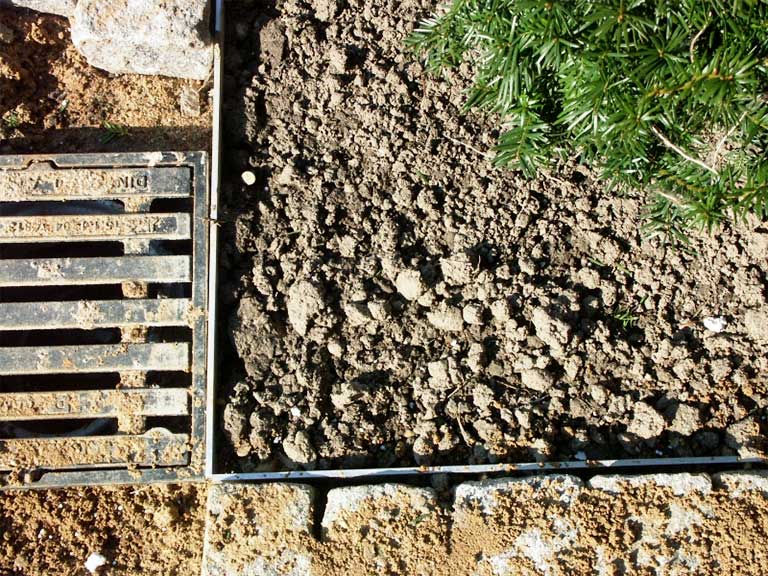

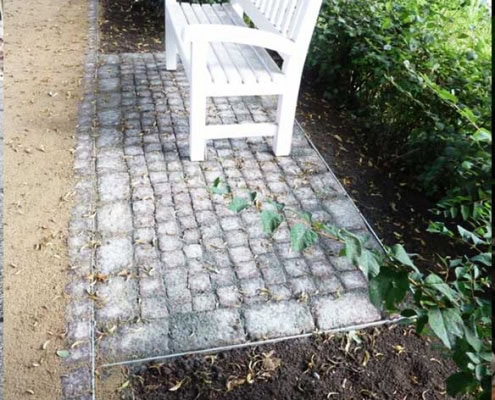

Einfassung einer Auffahrt

Installation Notes Limaflex®

  • The Limaflex® support rim (P55/12/20) is largely integrated into the newly created surfaces. The rim can be installed so that the upper profile edge is either above, below or flush with the surface to be created later.
  • The special profile shape allows the number and position of the anchors to be adjusted to the relevant building project and the surface being built on.
  • The profiles can be quickly and easily cut to length with a conventional hacksaw as needed. Care should be taken to ensure a clean cut.

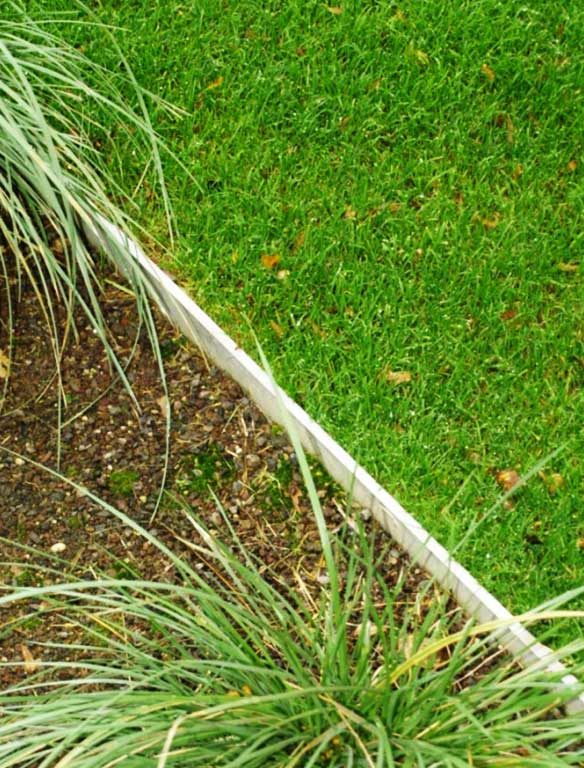

  • When laying on lawns, please consider the cutting height of lawnmowers!

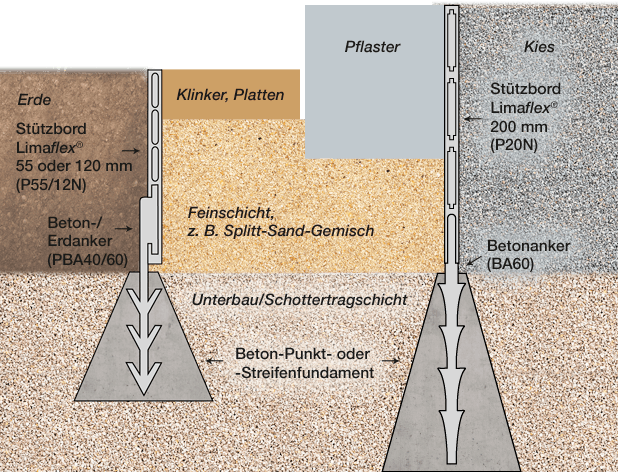

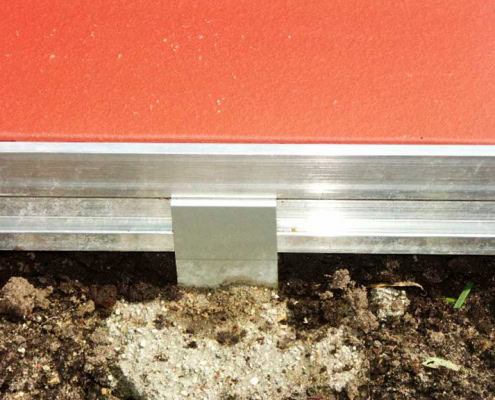

Installation method with concrete/ground anchors

  • Concrete/ground anchors (PBA40/60) or concrete anchors (BA60) will hold the profile in place, even under heavy stress.

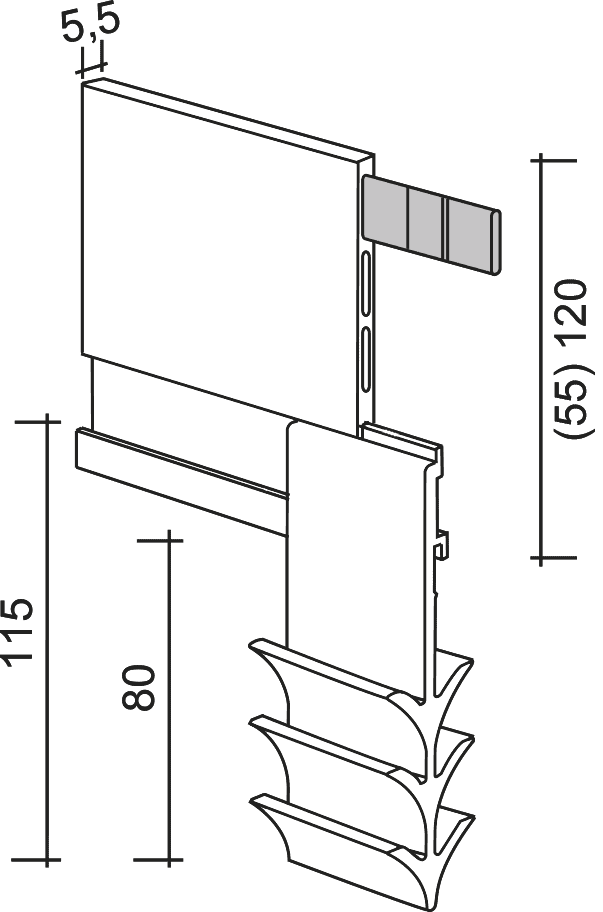

  • With 55 mm and 120 mm profile heights (P55 und P12), the concrete/ground anchors are inserted laterally into the groove guide of the Limaflex® support rim. With a 200 mm profile height (P20), the concrete anchors are inserted into the profile from below. The quickest way to do this is by first laying the clean support rim on a flat surface with the groove guide facing upwards. A plastic or wooden mallet can be used here.
  • Depending on the planned radii and structural conditions, we recommend using approx. 3-4 concrete/ground anchors respectively 2 concrete anchors per running metre.
  • Die Beton-/Erdanker werden in den noch weichen, abbindenden Beton bis zum Markierungswulst eingeschoben oder in vorbereitete Punktfundamente gestellt, die im Anschluss mit Beton gefüllt werden. Danach sind sie ggf. waagerecht auszurichten.
  • The concrete/ground anchors are pressed into the cement, as far as the marking bulge, while it is setting and still soft or inserted into pre-made point foundations which are then filled with cement. After that they can be aligned horizontally, if necessary.
  • Give the cement sufficient time to set. Add and, if necessary, lightly vibrate the fine layer or chipping-sand mixture.
  • The profiles are connected by the concrete/ground anchors, which are each inserted halfway into the profile ends. The 12-cm-high profiles (P12) and the 20-cm-high profiles (P20) are also connected with one another in the upper area optionally available profile connector (V12/V20), which is also inserted centrally between the profile ends.
  • Optional ready-made segments with specific radii are available.

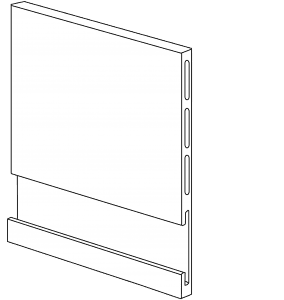

Profile straight

  • L = 2.500 mm, H = 55 mm, d = 5,5 mm | P55N25
  • L = 5.000 mm, H = 55 mm, d = 5,5 mm | P55N50
  • L = 2.500 mm, H = 120 mm, d = 5,5 mm | P12N25
  • L = 5.000 mm, H = 120 mm, d = 5,5 mm | P12N50

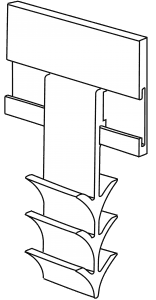

Concrete / ground anchor

B = 40 mm, H = 35 mm + 80 mm (Installation depth) | PBA40
B = 60 mm, H = 35 mm + 80 mm (Installation depth) | PBA60

Butt connectors

  • L =100 mm | V12N10
    (optional for profile 120 mm P12N)

Tread anchor (only for P55)

B = 20 mm, H = 35 mm | PA55
round hole Ø 7,5 mm

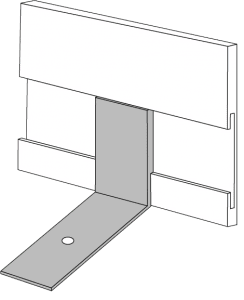

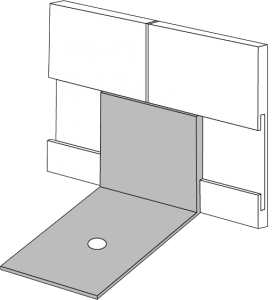

Profile anchor 90 ° (butt connector)

B = 40 mm, H = 35 mm | PVA40
B = 60 mm, H = 35 mm | PVA60
round hole Ø 7,5 mm

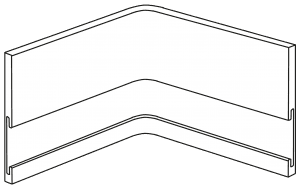

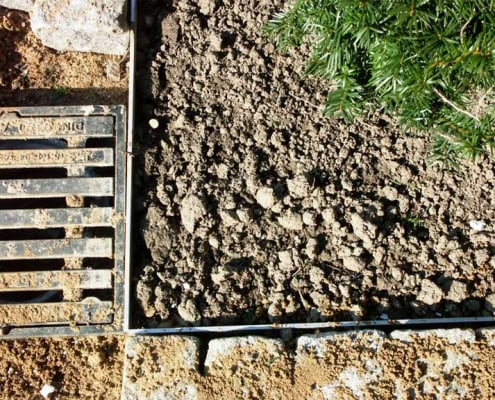

Corner element 90 ° and 270 °

Outside corner 90 °
100 + 100 mm, H = 55 mm | EV55N90

100 + 100 mm, H = 120 mm | EV12N90

Inside corner  270°
100 + 100 mm, H = 55 mm | EV55N270

100 + 100 mm, H = 120 mm | EV12N270

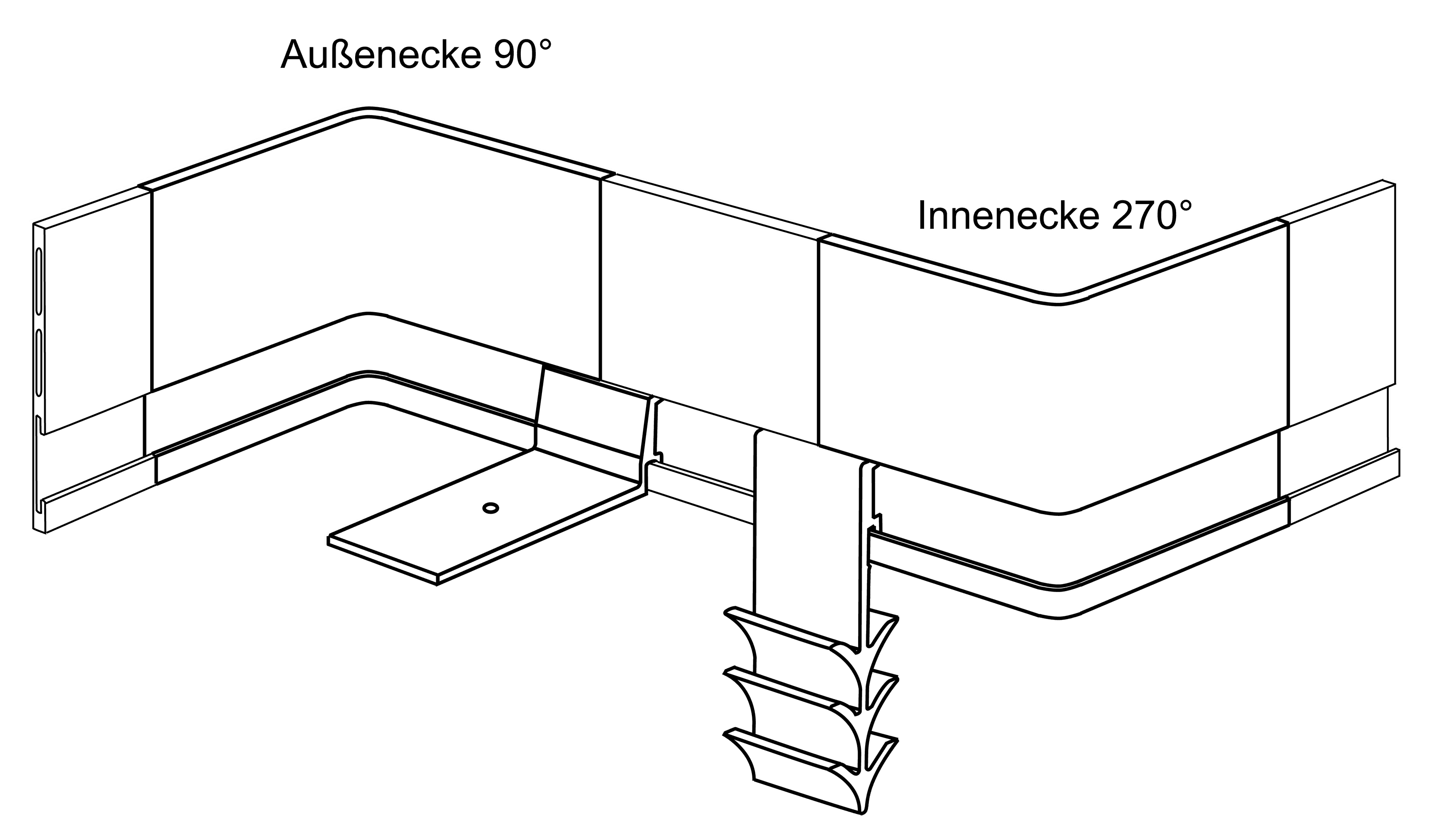

View outside / inside corner

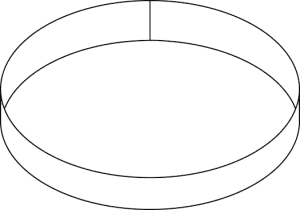

Arch element

Pre-bent profile segment

  • L bis 2.000 mm, H = 55 mm, d = 5,5 mm | B55N20
  • L bis 2.000 mm, H = 120 mm, d = 5,5 mm | B12N20

Steel earth nail

galvanized for PA55, PVA40 / 60 (content 50 pieces)

  • L = 180 mm, Ø = 6 mm | EN18ST
  • L = 230 mm, Ø = 6 mm | EN23ST

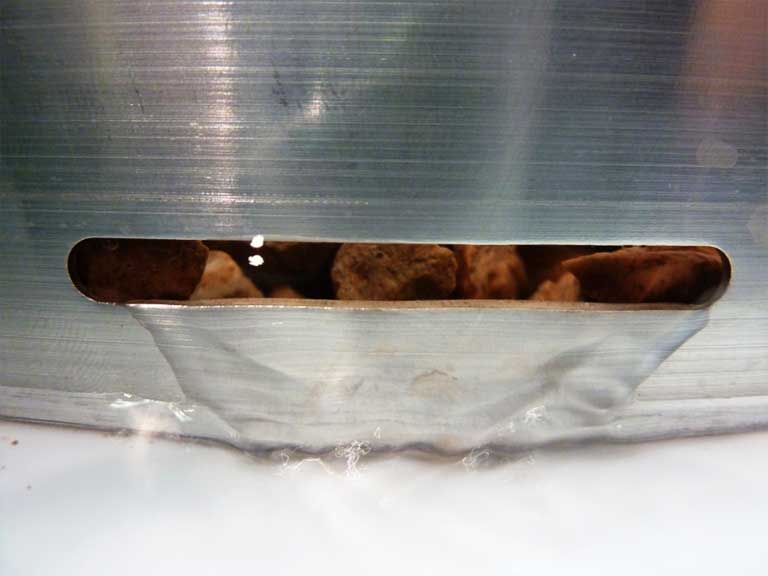

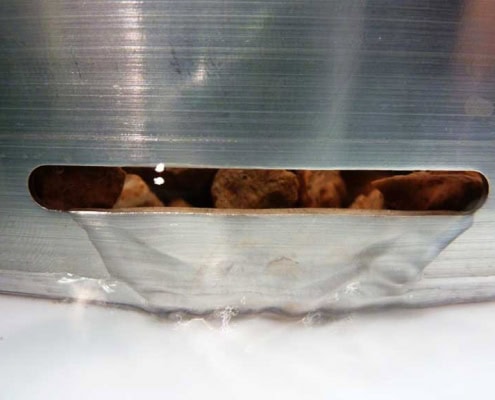

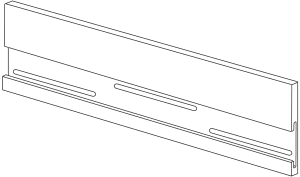

Water flow openings (for green roofs)

5 x 3 slots per 2.500 mm | WD355

hole size 5 x 50 mm

see also Limaflex ® roof

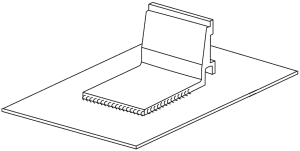

Positioning plate / profile anchor (for green roofs)

  • Plate dimensions: 120 x 200 x 5,5 mm | PVA60D
  • profile height (profile anchor): 35 mm
  • profile width (profile anchor): 60 mm
  • round hole Ø 7,5 mm

Special adhesives

1-component special adhesive 310 ml content | WFB310

The adhesive is not required for normal mounting but is intended for brackets (PA55 / PVAxx) that can not be screwed or nails worked (eg roof construction) .

The amount is sufficient to fix approximately 70 profile brackets on a clean surface.

Profile straight

  • L = 2.500 mm, H = 200 mm, d = 10 mm | P20N25
  • L = 5.000 mm, H = 200 mm, d = 10 mm | P20N50

Butt connectors

L = 100 mm |  V20N10

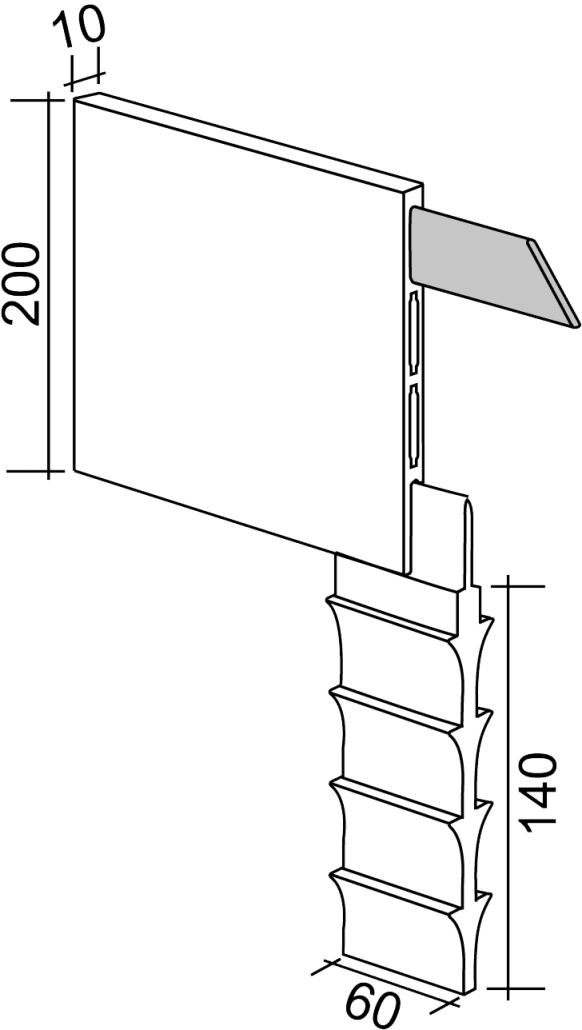

Concrete anchor

B = 60 mm, H = 45 mm + 135 mm (installation depth) | BA60

impact connection

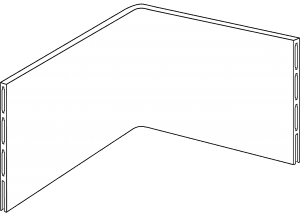

Corner element 90 ° and 270 °

100 + 100 mm, H = 200 mm | EV20N90

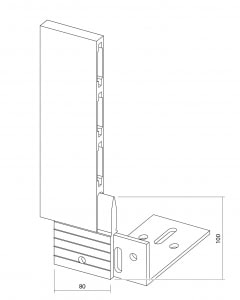

Positioning Anchor DA80V

Limaflex 200

Positioning Anchor, adjustable in height | DA80V

B = 80 mm, H = 45 mm, L = 100 mm

with 4 round holes Ø = 8,5 mm and two elongated holes.

Arc Segment

Limaflex 200

Pre-bent profile segment

  • L bis 2.000 mm, H = 200 mm, d = 10,0 mm | B20N

Daten
