Gramiflex®

System DescriptionEinbauhinweiseApplication examplesProduct Overview
PreviousNext

Absolute world innovation with patent protection

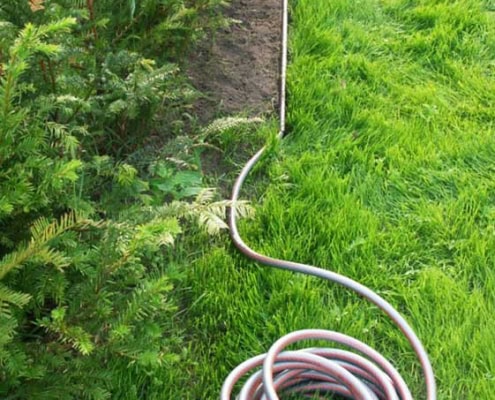

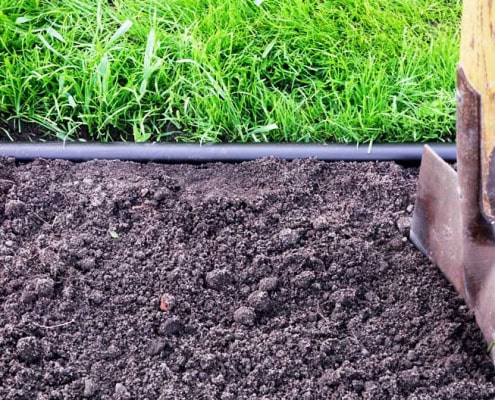

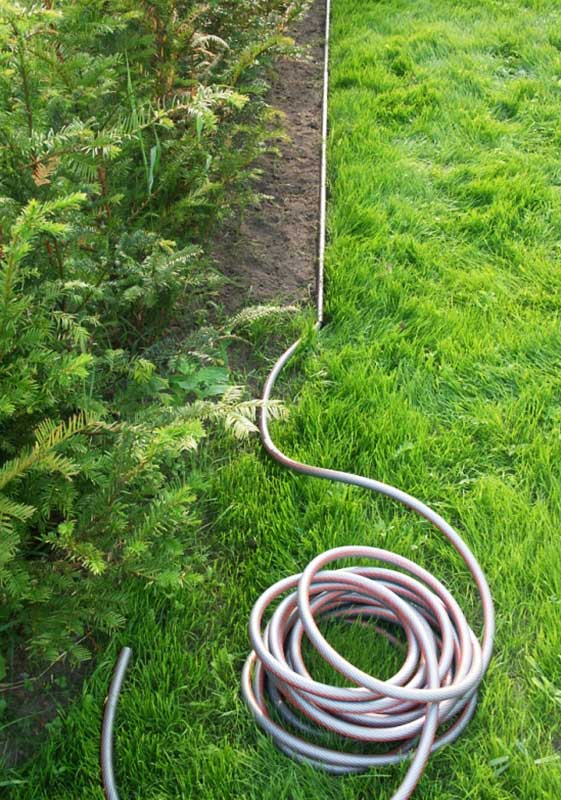

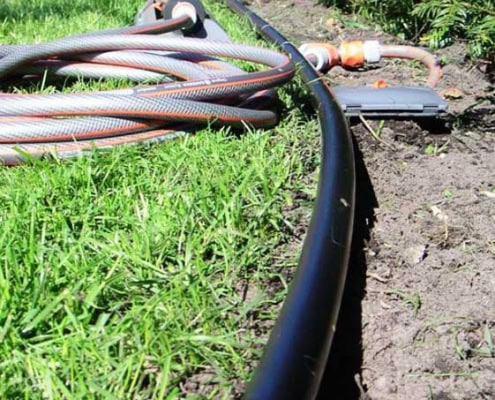

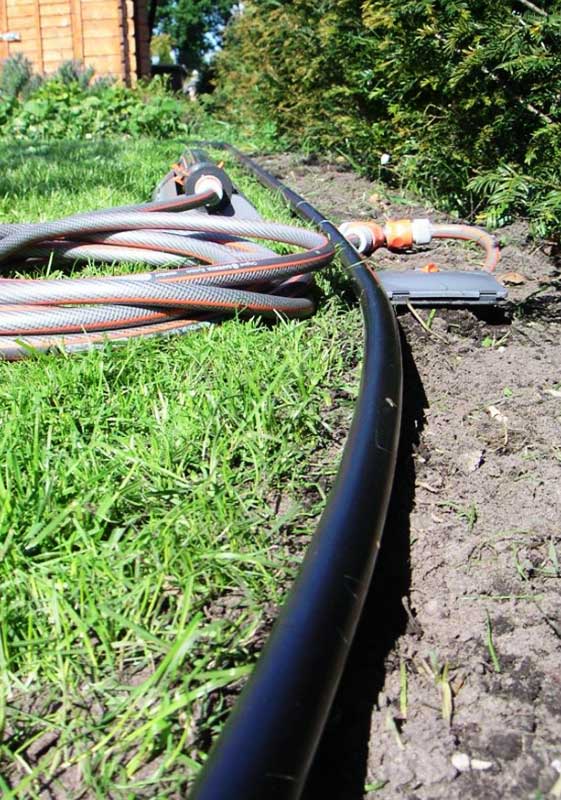

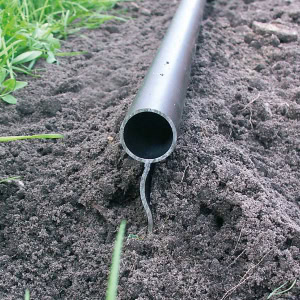

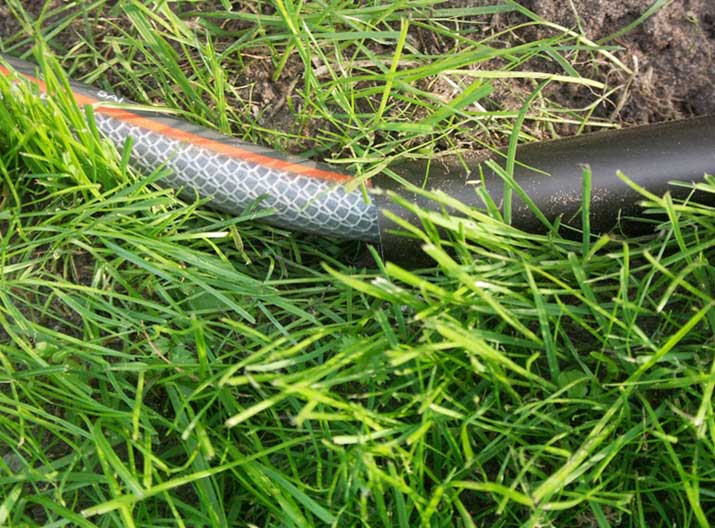

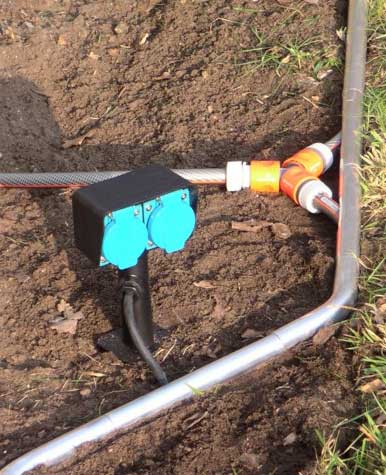

The new and innovative Gramiflex® lawn edge combines a discreet separation between lawns and beds with the additional use as hose guard and cable duct. The top of the aluminium profile has a hollow space, which a ½-inch garden hose can be passed through as well as a power cable. Discreet, almost invisible, it allows you to lay lighting cables and water-supply pipes, loudspeaker cables and intercom wiring in the garden. The upper side that the duct is under is pleasantly round and allows you to walk around the garden without shoes. Because of the stable, rust-free, non-rotting and non-cracking aluminium profile, the laid cables are largely protected against mechanical influences. The lawn edge is firmly held in the ground as a result of the s-shaped profile underneath the media ducts

The Gramiflex® lawn edge can be laid by hand without any special tools, in gentle curves and arcs with a radius of approx. 4 m. Extensive accessories, such as 90° and 135° corner elements, connecting pipes for the connection of the 1,000, 1,750 or 2,500 mm lawn edge elements as well as inlet/outlet pieces for hose or power cables complete the product range.

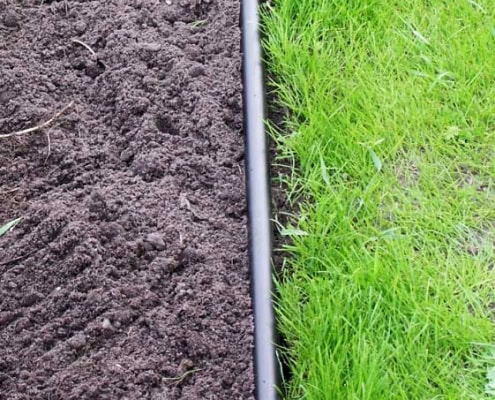

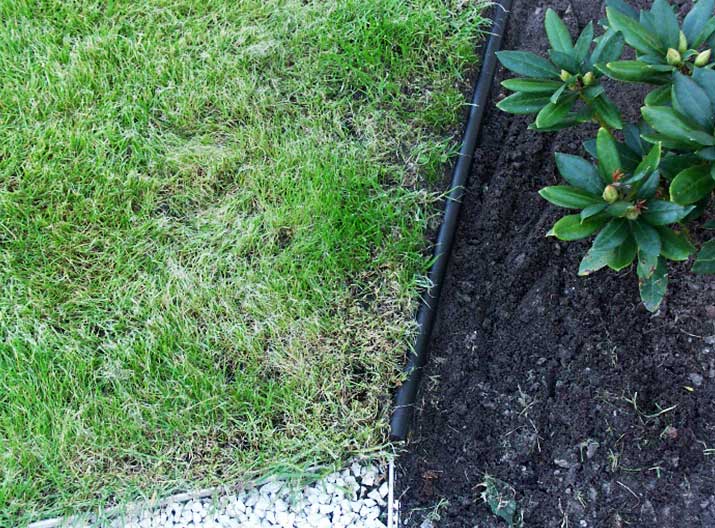

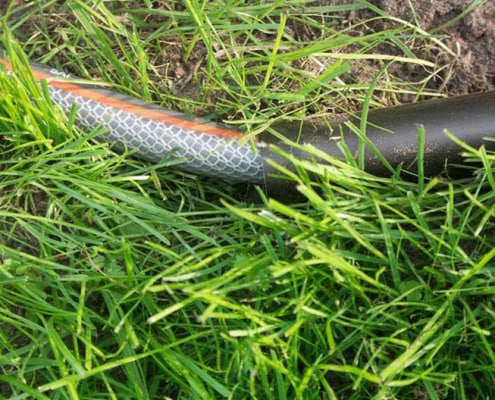

Depending on the customer’s preferences, a modern overall impression can be achieved using natural, silver-coloured or a discreet almost invisible border with anodised aluminium elements in dark bronze.

Your advantages at a glance:

  • Resistant to mechanical stresses and weathering influences
  • Easy and time-saving laying (the media duct is on the turf)
  • Corrosion-resistant and recyclable aluminium alloy
  • Flexible profile that can be shaped into gentle curves (approx. 4 m radius)
  • Round structure means that you can walk on it without shoes
  • Border areas do not dry out
  • Saves water because water does not leak out on the sides
  • Simplified edging maintenance because there is less root growth and overgrowth
  • Wide range of accessories for many different designs and applications

installation instructions Gramiflex®

  • Zu Beginn muss die Form des künftigen Rasenstückes, Beetes oder des Sandkastens festgelegt werden. Als Markierung kann ein Seil oder auch ein Gartenschlauch dienen.

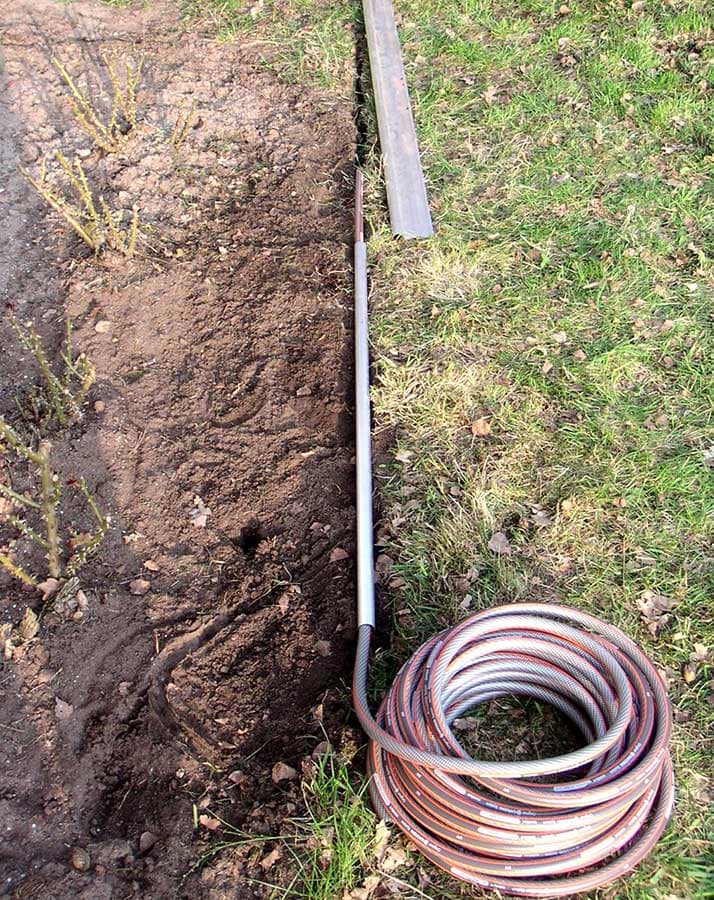

  • Um den Untergrund aufzuweichen, können die entsprechenden Stellen vorher bewässert werden. Häufig empfiehlt es sich, im Verlauf der geplanten Rasenkante mit dem Spaten oder einer Handschaufel eine Kerbe von ca. 8 cm Tiefe in den Boden zu stechen. Steine und sonstige Fremdstoffe sollten entfernt werden.
  • Element für Element wird das Aluminiumprofil in die Erdkerbe gesetzt. Leichtes Drücken von Hand genügt in den meisten Fällen für einen festen Sitz. Bei größerem Widerstand der Erde kann mit einem Gummihammer vorsichtig auf die runde Profiloberseite geschlagen werden.
  • Die Verbindung von Profilgeraden (P85) mit Verbindungsrohren (V20N80), mit Eckelementen (EV85) und Ein-/ Auslassstücken (MA25) sollte vor dem Einbau erfolgen. Dabei ist darauf zu achten, dass keine Erde oder Sand zwischen die Profilenden gelangt, da sonst die Stoßkanten nicht bündig aneinander gesteckt werden können. Am besten lassen sich Einheiten von ca. 1,5 bis 2,0 m Länge abschnittsweise verlegen.
  • Die Eckelemente haben keinen gewellten Untersteg wie die Profilgeraden. Dies ermöglicht die Verwendung in beide Richtungen, also sowohl als Links- als auch als Rechtskurve. Leichte Schwünge können auch mit den Profilgeraden erstellt werden. Hierbei ist darauf zu achten, dass keine punktuelle Belastung am Profil entsteht, da dies zu einem Einknicken führen kann.

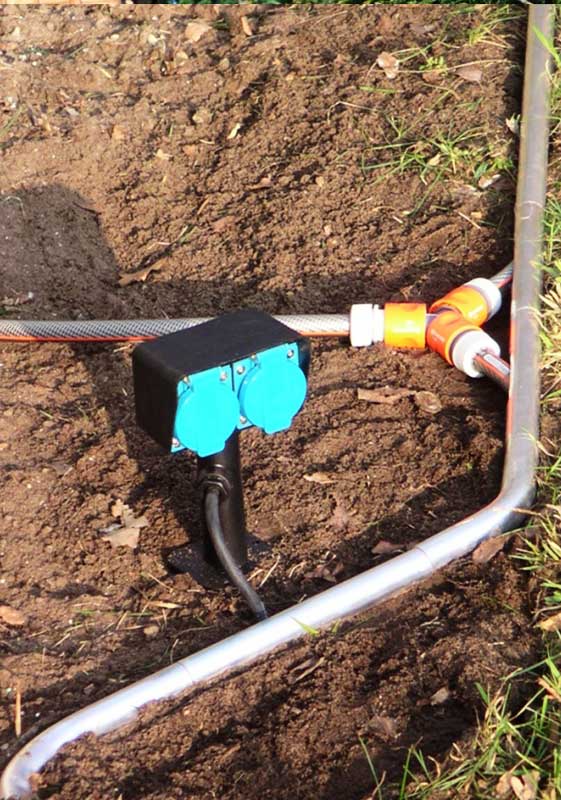

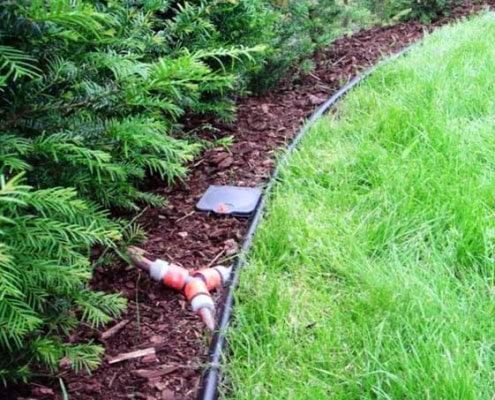

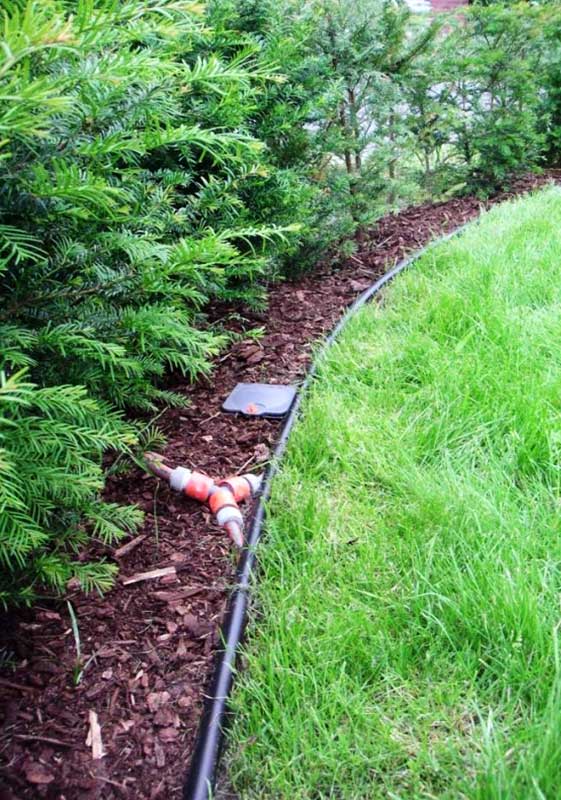

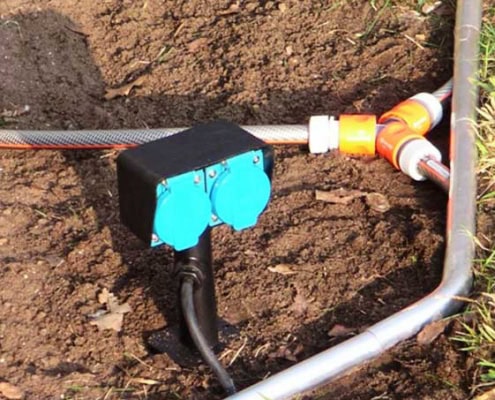

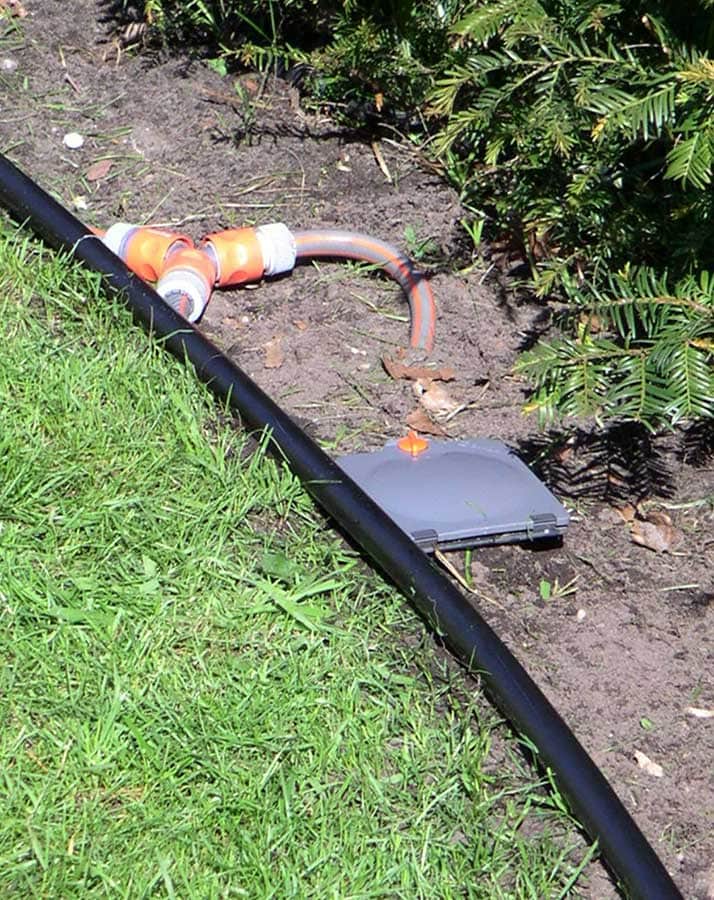

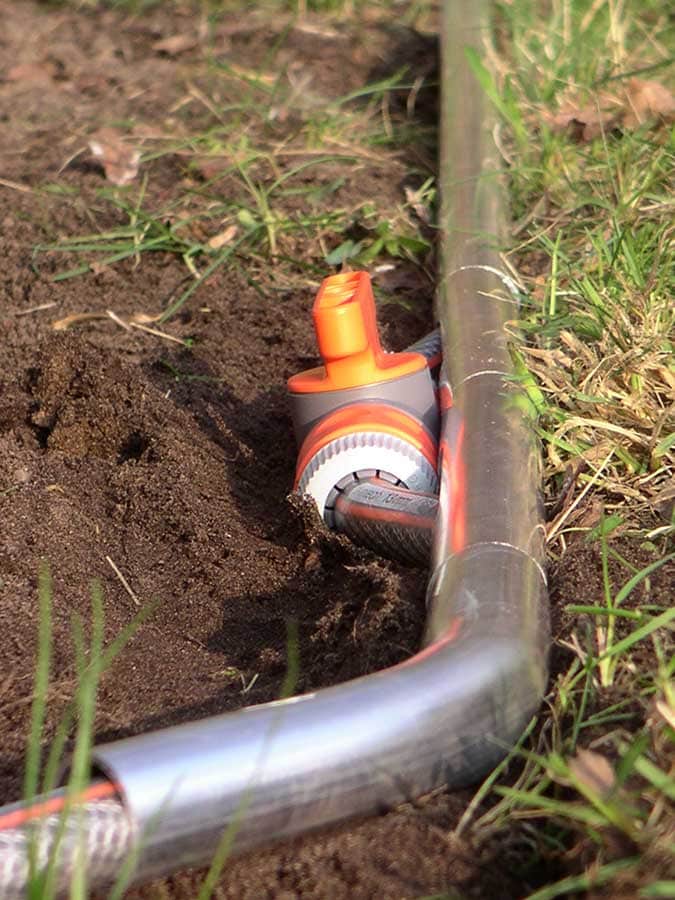

  • Je nach Art und Stärke der zu führenden Leitung empfehlen wir die Verwendung von zwei Ein-/ Auslassstücken direkt nebeneinander. Dies hat den Vorteil, dass bei dickeren und wenig flexiblen Materialien, z. B. einem ½“-Wasserschlauch, optisch ansprechende und praktische Entnahmestellen entstehen. Die Leitung wird durch das eine Ein-/Auslassstück aus dem Rasenkantenprofil heraus und durch das nächste wieder in den Profilhohlraum zurückgeführt.

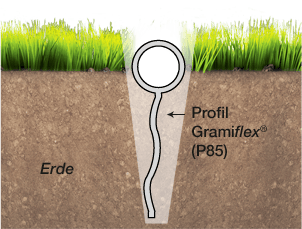

  • In der Regel sollte der Einbau so erfolgen, dass die Rundung der Profiloberkante etwa zur Hälfte
    (ca. 1 cm) oberhalb der Grasnarbe/Erdschicht liegt. Dabei ist besonders darauf zu achten, dass, wenn die Rasenkante mit einem Rasenmäher überfahren werden soll, die Profiloberkante deutlich unterhalb der Schnittkante des Mähgerätes liegt!
  • Bei Einbau der Profile in öffentlichen Anlagen und bei hoher Beanspruchung, z. B. in Kindergärten, empfehlen wir, zur zusätzlichen Stabilisierung punktuell ca. 200 mm breite und 100 mm starke Betonstützen in gleichmäßigem Abstand im unteren Profilbereich zu erstellen.
  • Notwendige Profilkürzungen werden mit einer handelsüblichen Handeisensäge schnell und einfach vorgenommen. Aus optischen Gründen ist auf einen sauberen Schnitt zu achten.

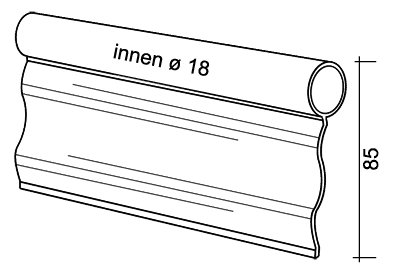

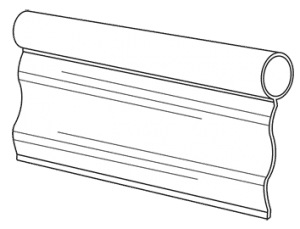

Profile straight

  • L = 1.000 mm, H = 85 mm, nature colors | P85N10
  • L = 1.750 mm, H = 85 mm, nature colors | P85N17
  • L = 2.500 mm, H = 85 mm, nature colors | P85N25
  • L = 1.000 mm, H = 85 mm, dark bronze anodized | P85E10
  • L = 1.750 mm, H = 85 mm, dunkelbronze eloxiert | P85E17
  • L = 2.500 mm, H = 85 mm, dunkelbronze eloxiert | P85E25

Connecting pipe

  • L = 80 mm, nature colors | V20N80

Inner diameter: 18 mm

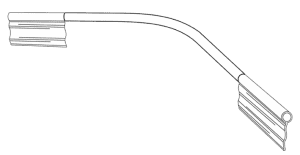

Corner element

Rundrohr: Außendurchmesser Ø 24 mm,
Radius ca. 175 mm

  • L = ca. 190 + 190 mm, naturfarben | EV85N90
  • L = ca. 190 + 190 mm, dunkelbronze eloxiert | EV85E90

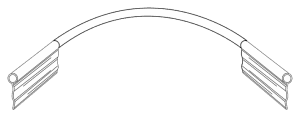

Corner element 135°

Rundrohr: Außendurchmesser Ø 24 mm,
Radius ca. 175 mm

  • L = ca. 190 + 190 mm, naturfarben | EV85N135
  • L = ca. 190 + 190 mm, dunkelbronze eloxiert | EV85E135

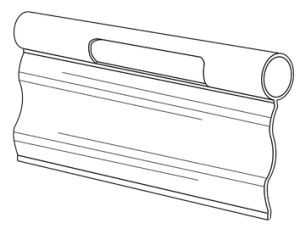

Input / outlet piece

opening: ca. 20 x 80 mm

  • L = 200 mm, naturfarben | MA25N20
  • L = 200 mm, dunkelbronze eloxiert | MA25E20
