Viaflex®

System DescriptionEinbauhinweiseApplication examplesprofile type 97mmProfile type 150mm
PreviousNext

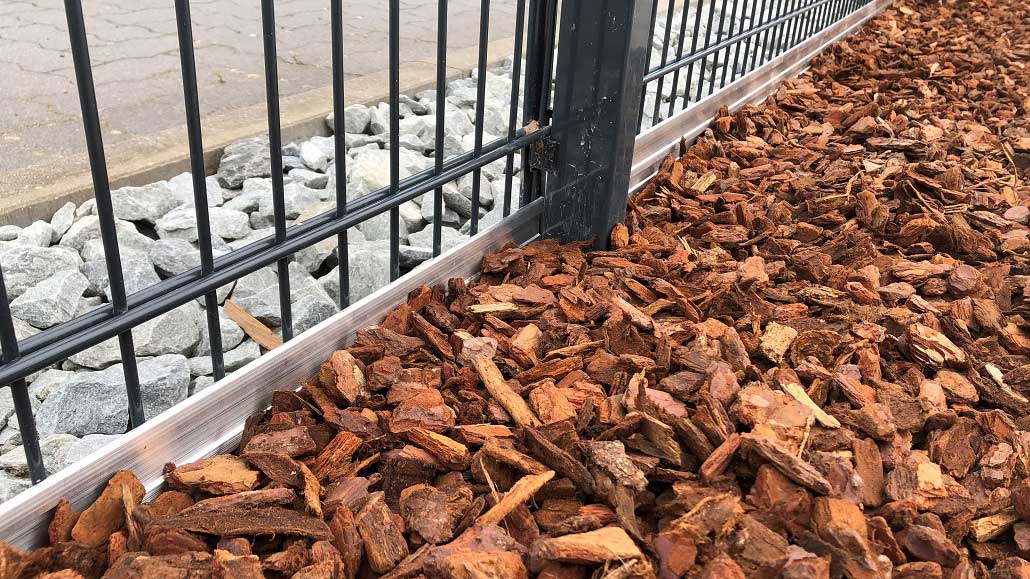

The Viaflex®  profiles P10 (97 mm height) and P15 (150 mm height) are ideally suited for edging beds, for cycle and footpath borderings and for roof greening. They can be laid easily and in any shape, and do not require much material or special tools. Despite their low weight they are extremely robust and do not decay, crack or rust unlike wood, plastic or steel. Gentle curves along the profiles make them safe to handle during installation and maintenance. In addition to the natural aluminium version, the 97 mm profile is also available in anodised black.

The special profile is not just very robust, as already mentioned, it also means that the profiles can be connected with screws or rivets. Connecting elements are available for both profile heights. They do not have to be used, however, because the profiles can simply be slid into one another. This means that you can vary the shape between straight lines, arcs and circles. The need for accurate sawing work is therefore kept to a minimum. Machine curved full circles are also available for profile type P10 in addition to the connectors (for flush mounting) and various corner and T-elements. Both profile types come with profile anchors and ground pegs for additional ground anchoring.

Your advantages at a glance:

  • Easy and time-saving laying (approx. 1 – 2 mm under the cutting edge of the lawn mower)
  • Corrosion-resistant and recyclable aluminium alloy
  • Resistant to mechanical stresses and weathering influences
  • Flexible profile that can be easily shaped into arcs, curves or corners in two heights
  • Wide range of accessories for many different designs
  • Border areas do not dry out
  • Saves water because water does not leak out on the sides
  • Simplified edging maintenance because there is less overgrowth

Variant with profile bracket

Einbauhinweise Profiltypen P10 und P15 für Beetbegrenzungen

  • Das Profil (P10/15N) sollte zu maximal einem Drittel seiner Höhe aus dem Erdreich bzw. der Oberfläche der wassergebundenen Wegedecke herausstehen.
  • Der Einbau kann durch Einlegen oder Einschlagen des Profils in das Erdreich erfolgen. Mit (optionalen) Alu-Erdnägeln (EN30/40) oder Profilhaltewinkeln 90° (PH80) ist eine zusätzliche Verankerung im Erdreich oder in einem Betonbett möglich.
  • Die Verbindung der Profile erfolgt durch das Ineinanderstecken der Profilenden an den Führungsschienen oder durch Verwendung von Stoßverbindern (V10/15N) bzw. Profilhaltewinkeln, in die die Profilenden eingeschoben werden. Mit Stoßverbindern – sie befinden sich hinter dem Profil – kann eine einheitliche und optisch ansprechende Vorderseite erreicht werden.
  • Notwendige Profilkürzungen werden mit einer Handeisensäge schnell und einfach vorgenommen. Dabei ist auf einen sauberen Schnitt zu achten.
  • Bei Verlegung an Rasenflächen bitte die Schnitthöhe von Mähfahrzeugen berücksichtigen!

Einbauvarianten ohne oder mit Alu-Erdnägeln

  • Mit einem Spaten o. ä. eine Kerbe vorstechen, in die das Profil anschließend hineingelegt wird. Mit einem Gummihammer oder unter Zuhilfenahme eines Holzstückes das Profil gleichmäßig in die Erde treiben. Gegebenenfalls mit einem Spaten das Erdreich noch etwas tiefer abtragen oder auflockern. Größere Steine und andere feste Gegenstände sollten entfernt werden. Das Profil kann mit Alu-Erdnägeln (EN30/40) im Erdreich verankert werden.
  • Bei Verwendung des Profils für Wegbegrenzungen im Rad- und Fußwegebau erfolgt der Einbau des Profils nach dem Abtragen des Oberbodens. Notwendig ist eine zusätzliche Verankerung des Profils mit Alu-Erdnägeln im Erdreich oder in einem Beton-Punkt- oder -Streifenfundament. Nach Einlegen des Profils und ggf. Abbinden des Betonfundaments werden die Unterbau- und Deckschichten eingebracht.
  • Der Erdnagel kann durch gezieltes, schräges Schlagen (mit einem Hammer) hinter und unterhalb der Oberkante des Viaflex-Profils getrieben werden.

Einbauvarianten mit Profilhaltewinkeln 90°

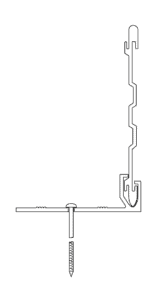

  • Die Profilhaltewinkel (PH80) werden auf das Profil aufgeschoben. Je nach Untergrund und Bauform können 3 bis 5 Stück Winkel pro laufenden Meter verwendet werden. Das Profil einschließlich der Profilhaltewinkel wird dann auf den planen Untergrund gestellt.
  • Je nach Einsatzzweck und baulichen Gegebenheiten können die Profilhaltewinkel mit Stahl-Erdnägeln verankert (EN18/23ST), geschraubt oder mit einem witterungsbeständigem, UV-stabilen Spezialkleber (WFB310) aufgeklebt werden (glatter, sauberer Untergrund – z. B. bei der Dachbegrünung).

Profile straight

Natural aluminum

  • L = 2.500 mm | P10N25
  • L = 2.500 mm, mit 2 Lochungen für Alu-Erdnagel EN | P10NL25
  • L = 5.000 mm | P10N50
  • L = 5.000 mm, mit 4 Lochungen für Alu-Erdnagel EN | P10NL50

black anodized, E6C35

  • L = 2.500 mm P10E25
  • L = 2.500 mm, with 2 holes for aluminum peg EN P10EL25

Aluminum peg

Natural aluminum

  • L = 300 mm | EN30

Optional for additional anchoring. When using pegs you need profile lines with perforations (“L” in article number) .

The peg is driven through the hole until its profile lug rests against the inner profile edge (see picture), thus closing the peg with the upper edge of the Sachsenband is secured against lateral slipping.

Profile holding angle 90 °

Natural aluminium

  • L = 65 mm, B = 80 mm, H = 25 mm | PH80
  • Hole punching Ø 7,5 mm

Optional zur zusätzlichen Verankerung. Abhängig von den baulichen Gegebenheiten werden mindestens 3 Profilhaltewinkel pro 2.500 mm Viaflex®-Profil empfohlen.

Der Profilhaltewinkel kann auch zum Verbinden von zwei Profilgeraden verwendet werden. Ein Stoßverbinder wird dann nicht benötigt.

Natural aluminum

  • L = 65 mm, B = 30 mm, H = 25 mm | PH30
  • Hole punching Ø 7,5 mm

suitable for the attachment of bows B10N10 and B10N15

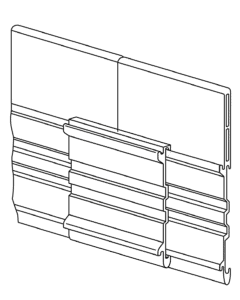

Butt connector

Natural aluminum

  • L = 100 mm | V10N10

Please note that a butt connector is not absolutely necessary, as the profile ends can also be connected to each other simply by telescoping.

A butt joint is required if you want a flat visible surface (“joint to joint”) or a straight line in plan view.It ends 10 mm below the upper edge of the Sachsenband and is no longer visible after installation ( see image).

black anodized, E6C35

  • L = 100 mm | V10E10

Corner element 90 ° (outside corner)

Natural aluminum

  • L = 75 + 75 mm | EV10N90

View outside / inside corner

black anodized, E6C35

  • L = 75 + 75 mm | EV10E90

Corner element 90 ° (inside corner)

Natural aluminum

  • L = 75 + 75 mm | EV10N270

View outside / inside corner

black anodized, E6C35

  • L = 75 + 75 mm | EV10E270

T-element

Natural aluminum

  • 75 + 75 + 75 mm | TV10N75
  • pairs

Arc

Natural aluminum

  • open full circle (including a butt connector)
  • ø 500 mm | B10N05
  • ø 1.000 mm | B10N10
  • 2 telescoping semicircles (including 2 butt connectors) ø 1.500 mm | B10N15

Angle profile 90°, pre-assembled

  • Profile length Viaflex 97 mm included profile holding angle as l-system pre-assembled inclusiv 8/16 round holes. L-leg at the end of the profile lengh shortened for using connector. Aluminium natur colour, Profile support angle 90°.
  • L = 2,5 m| P10PH80N25
  • L = 5 m| P10PH80N50

Steel earthnail

galvanized for profile bracket (content 50 pieces)

  • L = 180 mm, Ø = 6 mm | EN18ST
  • L = 230 mm, Ø = 6 mm | EN23ST

Special adhesives

1-component special adhesive 310 ml content | WFB310
The adhesive is not required for normal mounting, but is intended for brackets (PH80, PH30) that can not be screwed or nailed (eg roof construction). The amount is sufficient to fix about 70 profile brackets on a clean surface.

Profile straight

Natural aluminum

  • L = 2.500 mm | P15N25
  • L = 2.500 mm, with 2 holes for aluminum peg EN | P15NL25
  • L = 5.000 mm | P15N50
  • L = 5.000 mm, with 4 holes for aluminum peg EN | P15NL50

black anodized, E6C35

  • L = 2.500 mm P10E25
  • L = 2.500 mm, with 2 holes for aluminum peg EN P10EL25

Aluminum peg

Natural aluminum

  • L = 300 mm | EN40

Optional for additional anchoring. When using pegs you need profile lines with perforations (“L” in article number).

The peg is driven through the hole until its profile lug rests against the inner profile edge (see picture), thus closing the peg with the upper edge of the Sachsenband is secured against lateral slipping.

Profile holding angle 90 °

Natural aluminium

  • L = 65 mm, B = 80 mm, H = 25 mm | PH80
  • Hole punching Ø 7,5 mm

Optional zur zusätzlichen Verankerung. Abhängig von den baulichen Gegebenheiten werden mindestens 3 Profilhaltewinkel pro 2.500 mm Viaflex®-Profil empfohlen.

Der Profilhaltewinkel kann auch zum Verbinden von zwei Profilgeraden verwendet werden. Ein Stoßverbinder wird dann nicht benötigt.

Butt connector

Natural aluminium

  • L = 100 mm | V15N10

Please note that a butt connector is not absolutely necessary, as the profile ends can also be connected to each other simply by telescoping.

A butt joint is required if you want a flat visible surface (“joint to joint”) or a straight line in plan view.It ends 10 mm below the upper edge of the Sachsenband and is no longer visible after installation ( see image).

Corner element 90 ° (outside corner)

Natural aluminium

  • L = 75 + 75 mm | EV15N90

View outside / inside corner

Corner element 90 ° (inside corner)

Natural aluminium

  • L = 75 + 75 mm | EV15N270

View outside / inside corner

T-element

Natural aluminium

  • 75 + 75 + 75 mm | TV15N75
  • pairs

Angle profile 90°, pre-assembled

  • Profile length Viaflex 150 mm included profile holding angle as l-system pre-assembled inclusiv 8/16 round holes. L-leg at the end of the profile length shortened for using connector. Aluminium natur colour, Profile support angle 90°.
  • L = 2,5 m| P15PH80N25
  • L = 5 m| P15PH80N50

Steel earthnail

galvanized for profile bracket (content 50 pieces)

  • L = 180 mm, Ø = 6 mm | EN18ST
  • L = 230 mm, Ø = 6 mm | EN23ST

Special adhesives

1-component special adhesive 310 ml content | WFB310
The adhesive is not required for normal mounting, but is intended for brackets (PH80, PH30) that can not be screwed or nailed (eg roof construction). The amount is sufficient to fix about 70 profile brackets on a clean surface

Daten

Sachsenband Metalltechnik GmbH
Grothwisch 8
D-25482 Appen bei Hamburg

Kontakt

Tel. +49 (0) 4101 5179050
Fax +49 (0) 4101 5179051
E-Mail: info@sachsenband.de
