Limaflex® option roof

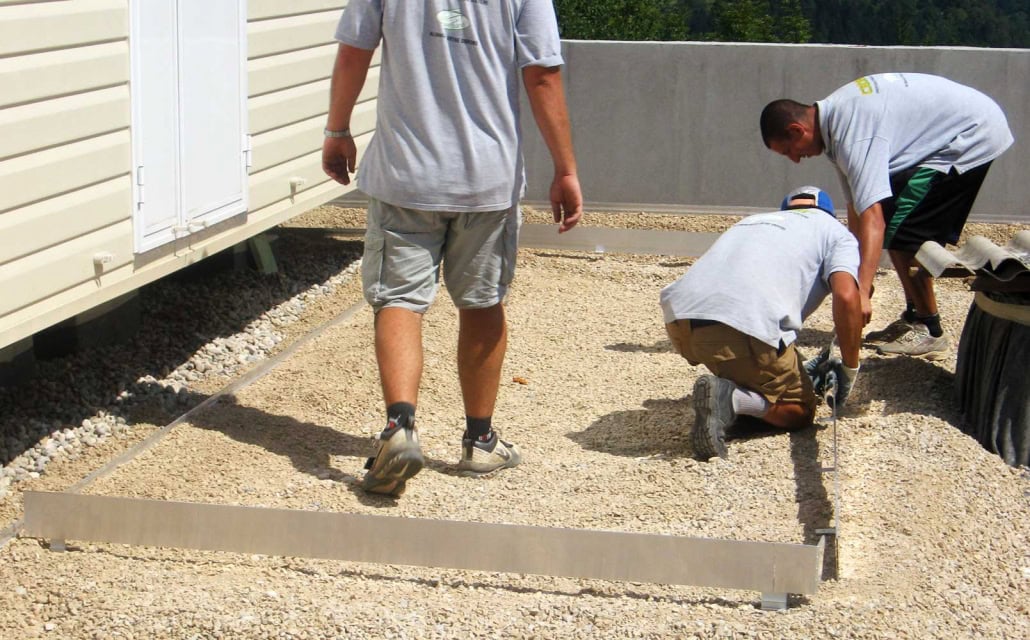

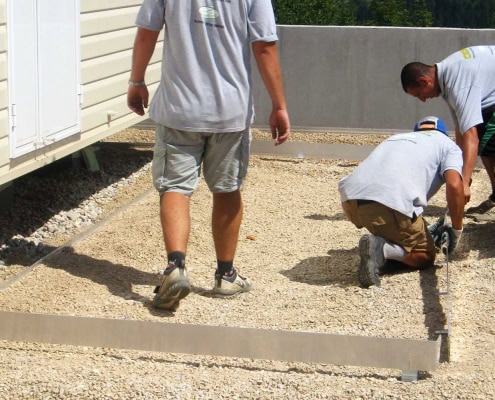

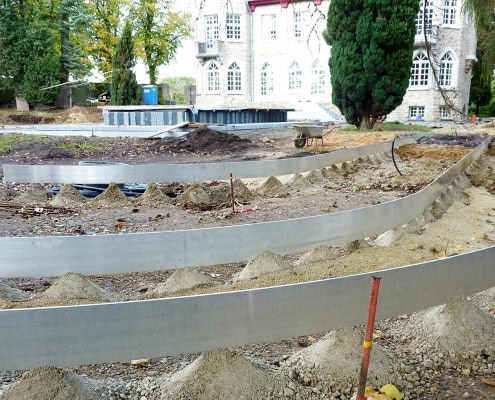

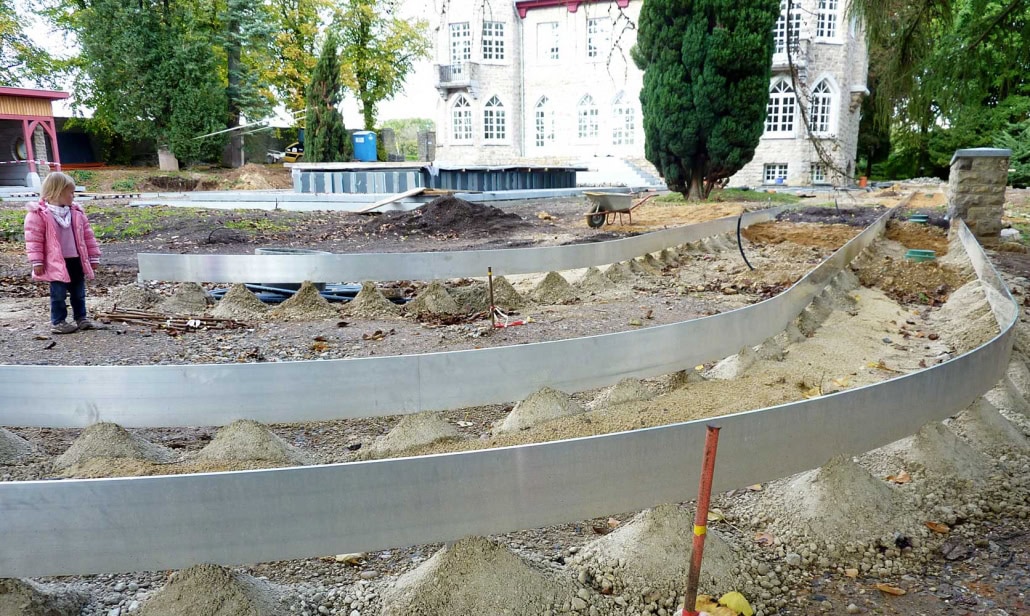

System descriptionNotes on installationApplication examplesLima 55/120Lima 200
Previous Previous Previous Next Next Next

System Description Limaflex® Roof Option

This profile with water outlet openings is available in heights of 55 mm and 120 mm. It can be installed without any special tools and shaped in curves and free forms with a radius of 1.5 m or more, giving you endless options for your individual design.

Depending on the type of installation, it is held in place by profile anchors or ground/concrete anchors. Connectors are available as corner connectors with 90° or 270° angles and end-to-end connectors.

Limaflex® 55/120

Profile heights: 55 mm & 120 mm

Size of holes: 55 mm length, 5 mm diameter

Positioning of holes: 3 each, 5 units with 3 oblong holes each in a 2,5 m profile

Use: Roof greening and edge trimming against pavement slabs

Limaflex® 200 – robust, height-adjustable roof anchor

The DA80V anchor can be adjusted to level out heights between 2 cm and 5 cm, offering a quick and neat solution for anchoring the sturdy Limaflex 200 profile on rooftops.

Its large surface and four round holes with a diameter of 8,5 mm enable safe mounting. A milled oblong hole serves to adjust profile height. The 8 mm stainless steel screw with washer and nut enables levelling out gradients.

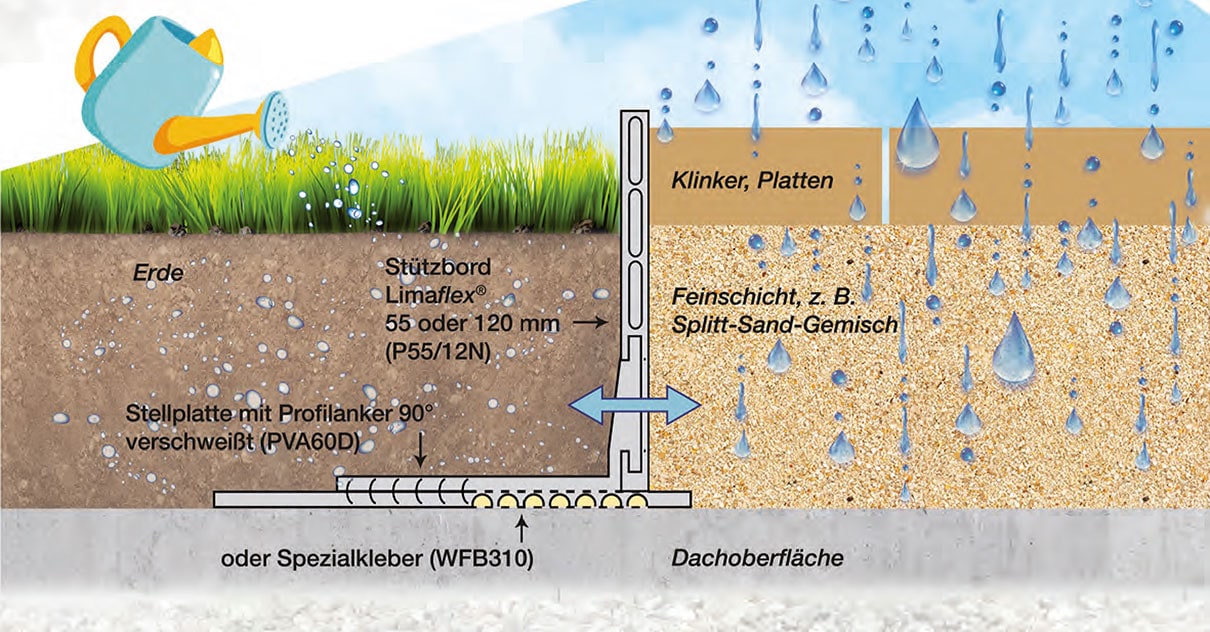

Notes on installation Limaflex® Roof Option

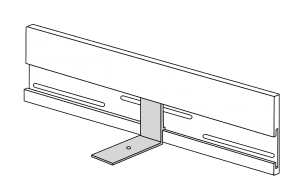

Basic element with profile achor

Limaflex 55mm with water holes for Egde drainage

  • Profile heights: 55 mm & 120 mm
  • Hole size: 55 mm long & 5 mm diameter
  • Hole arrangement: 3-pieces-unit, 5 units with 3 slots per 2,5 m profile
  • Appication: Roof greening and edge finish for terrace slabs

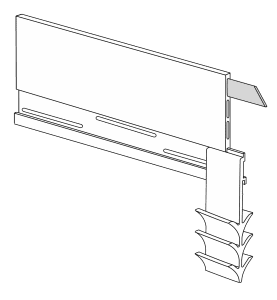

Basic element with connector & concrete/ground anchor

Limaflex 120mm with water holes for Egde drainage

  • Profile height: 120 mm
  • Hole size: 55 mm long & 5 mm diameter
  • Hole arrangement: 3-pieces-unit, 5 units with 3 slots per 2,5 m profile
  • Appication: Roof greening and edge finish for terrace slabs

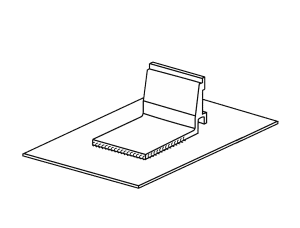

Positioning plate / profile anchor (for green roofs)

Limaflex

  • Plate dimensions: 120 x 200 x 5,5 mm | PVA60D
  • profile height (profile anchor): 35 mm
  • profile width (profile anchor): 60 mm
  • round hole Ø 7,5 mm

Steel earthnail

galvanized for PVA40 / 60 (content 50 pieces)

  • L = 180 mm, Ø = 6 mm | EN18ST
  • L = 230 mm, Ø = 6 mm | EN23ST

Special adhesives

1-component special adhesive, 310 ml content | WFB310
(for adhesive mounting of PVAxx on clean surfaces)

Profile straight

Limaflex 200

L = 2.500 mm, H = 200 mm, d = 10 mm | P20N25

Butt connectors

Limaflex 200

L = 100 mm | V20N10

Concrete anchor

Limaflex 200

B = 60 mm, H = 45 mm + 135 mm (Installation depth) | BA60
impact connection

Corner element 90° and 270°

Limaflex 200

100 + 100 mm, H = 200 mm | EV20N90

Roof anchor DA80V

Limaflex 200

Positioning Anchor , adjustable in height.| DA80V

B = 80 mm, H = 45 mm, L = 100 mm

With 4 round holes Ø = 8,5 mm and two elongated holes.

Steel earthnail

galvanized for PVA40 / 60 (content 50 pieces)

  • L = 180 mm, Ø = 6 mm | EN18ST
  • L = 230 mm, Ø = 6 mm | EN23ST

Special adhesives

1-component special adhesive, 310 ml content | WFB310
(for adhesive mounting of PVAxx on clean surfaces)
